Suspensie reglabila MTS Technik pentru Volkswagen VENTO (1H2) 1.9 D 48 kW seria Stance Gold

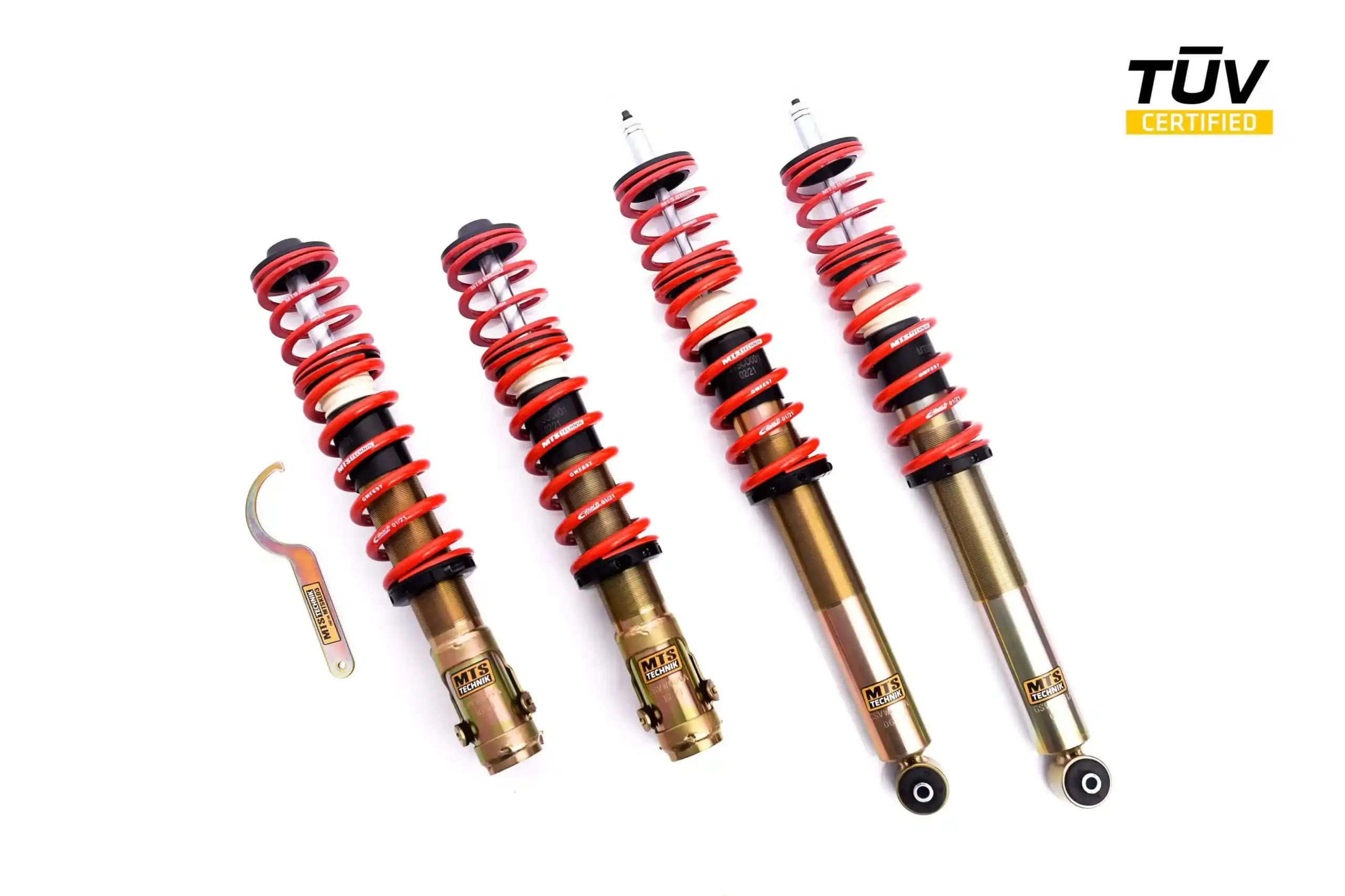

SUSPENSIE REGLABILA MTS VOLKSWAGEN VENTO (1H2)

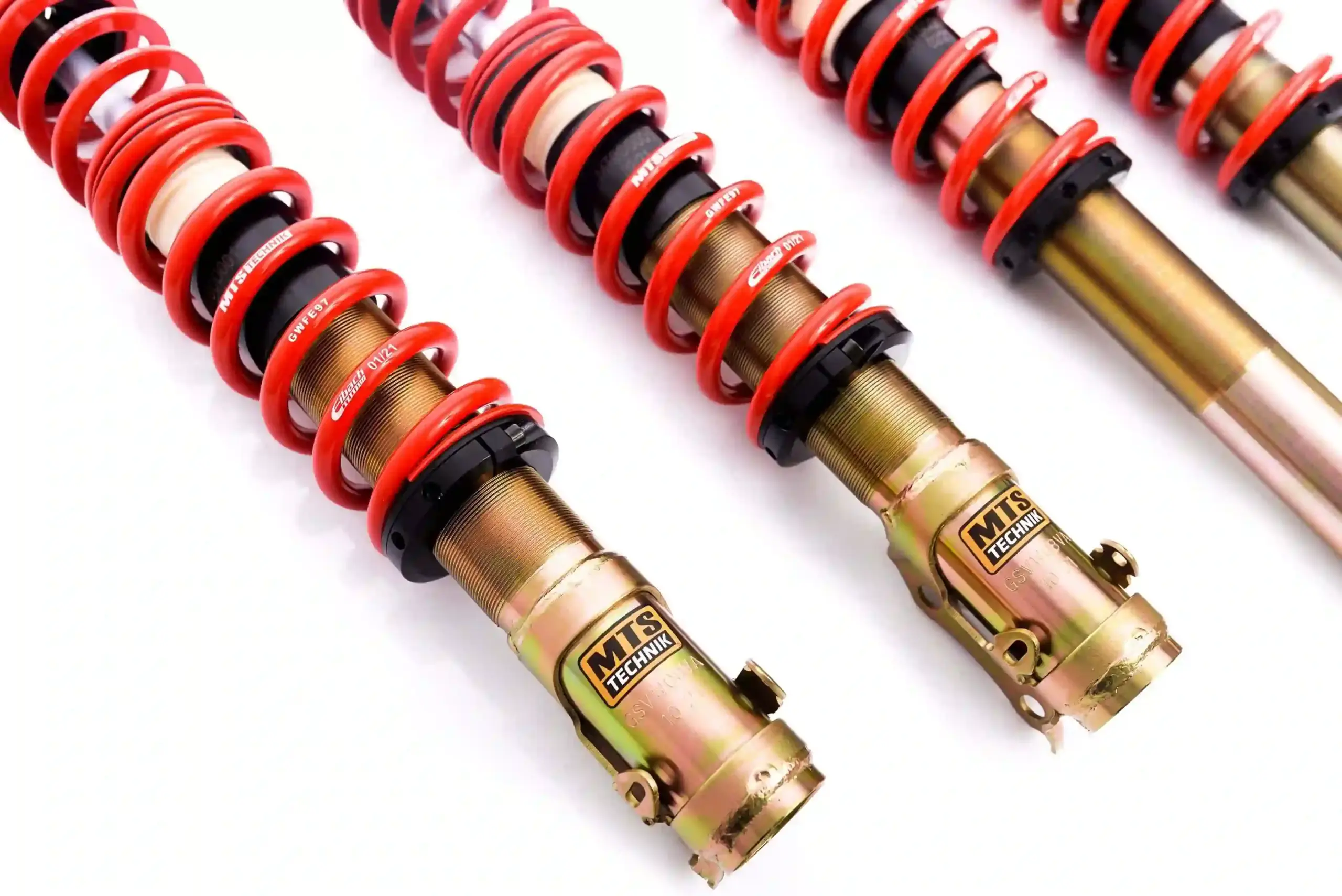

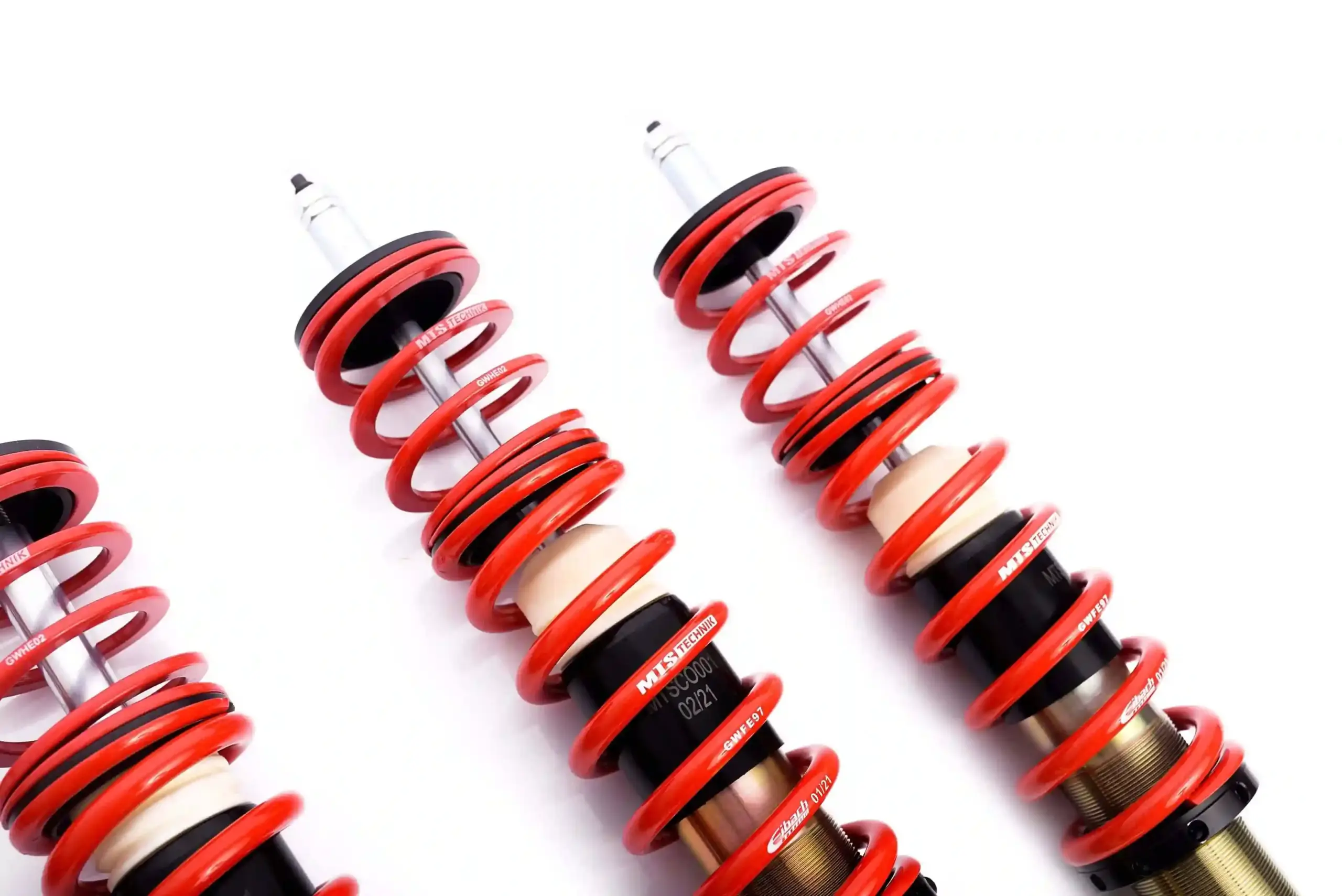

3 – Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear)
21 – If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower
24 – During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers
25 – In some cases it might be necessary to dismount the rear adjustment to achieve the maximum lowering
35 – Rear thread adjustment block is mounted on the top
39 – Installation is also possible for vehicles with electronic damping force adjustment. The electronic system must be deactivated in this case
73 – For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
